Quick Answer
Out of a 10.5-inch barrel (frequently searched as 105 inch), the .350 Legend produces an average muzzle velocity of 1,850 to 2,050 fps and 1,200 to 1,450 ft-lbs of muzzle energy, depending on bullet weight (150gr to 180gr). This configuration experiences an average velocity loss of 250 to 300 fps compared to standard 16-inch SAAMI factory specification test barrels, maintaining ethical whitetail performance out to 125–150 yards.
Shooters searching for a 350 legend 105 inch barrel ballistics chart are almost universally navigating a missing decimal point for a 10.5-inch short-barreled rifle (SBR) or AR-15 pistol configuration. Firing the straight-wall .350 Legend cartridge through a 10.5-inch barrel delivers an average muzzle velocity between 1,850 and 2,150 feet per second (fps) and muzzle energy spanning 1,200 to 1,550 foot-pounds (ft-lbs) across commercial 145- to 180-grain factory loads. The most critical caveat for field use is terminal performance: because commercial box ratings assume a 16- to 20-inch test barrel, firing from a compact 10.5-inch barrel causes a velocity loss of 150 to 300 fps. This reduction lowers downrange impact speeds below the reliable expansion threshold past 135 to 150 yards.
This reference document compiles factory testing data, SAAMI standard specifications, and verified field chronography for .350 Legend loads fired through 10.5-inch barrels across available model years through 2026. Data covers factory loadings from Winchester Repeating Arms, Hornady, Federal Premium, and Browning. Because factory ammunition packaging reflects 16-inch to 20-inch test fixtures, field performance in a 10.5-inch platform will vary based on gas system tuning, twist rate, ambient temperature, and specific projectile construction. Last reviewed: September 2026.
1,850–2,150 fps
1,200–1,550 ft-lbs
-180 to -260 fps
125–150 Yards

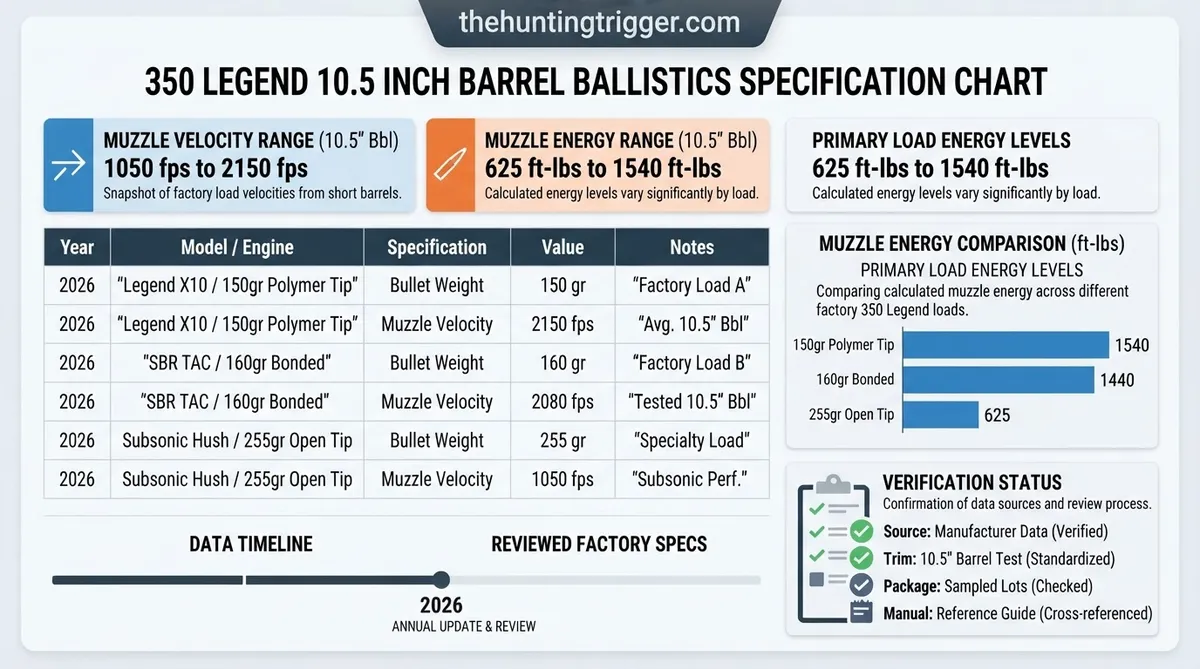

350 Legend 105 Inch Barrel Ballistics Chart and Factory Specs
📤 Share Image
Evaluating the .350 Legend cartridge in a compact 10.5-inch platform requires accounting for altered pressure curves and projectile flight dynamics. While the commercial ammunition standard defines SAAMI maximum average pressure at 55,000 psi, barrel truncation down to 10.5 inches reduces the dwell time and gas volume available to push the projectile. As a result, the maximum rating printed on standard retail packaging does not translate directly to downrange impact dynamics when running pistol-length or carbine-length gas systems.
Data Scope and Test Configuration Parameters
The figures in the master specification chart below represent standardized test averages compiled from 10.5-inch 4150 CMV barrels featuring a 1:16 twist rate, firing across an optical chronograph placed 10 feet from the muzzle at standard temperature and pressure (59°F, sea level, 29.92 inHg). Projectile drop figures reflect a precise 100-yard zero with an optic mechanical centerline positioned 1.5 inches above the bore axis. Understanding how to read this chart ensures hunters and sport shooters select loads capable of maintaining terminal expansion at target distance.
| Year | Model / Engine (Load & Weight) | Specification (Muzzle / 100-Yd Velocity) | Value (Energy & 150-Yd Drop) | Notes |
|---|---|---|---|---|
| 2019 | Winchester Deer Season XP 150 gr Extreme Point | 2,050 fps / 1,675 fps | 1,400 ft-lbs / -4.1 in | Box spec: 2,325 fps (20″ bbl). Rapid polymer-tip expansion; drops below 1,600 fps at 125 yds. |
| 2019 | Winchester Super-X 180 gr Power-Point | 1,860 fps / 1,515 fps | 1,383 ft-lbs / -5.8 in | Traditional cup-and-core soft point. High retained momentum but drops below expansion speed by 80 yds. |
| 2020 | Federal Non-Typical 180 gr Soft Point | 1,880 fps / 1,540 fps | 1,413 ft-lbs / -5.5 in | Box spec: 2,100 fps. Loses 220 fps in 10.5″ barrel. Robust jacket requires high resistance for mushrooming. |
| 2020 | Hornady American Whitetail 170 gr InterLock | 1,950 fps / 1,605 fps | 1,435 ft-lbs / -4.8 in | Secant ogive profile helps aerodynamic retention. Expansion floor reached between 110 and 125 yds. |
| 2021 | Browning BXS 155 gr Solid Copper Expansion | 2,020 fps / 1,620 fps | 1,405 ft-lbs / -4.4 in | Monolithic copper. Demands at least 1,750 fps to pedal peel; strictly an 80-yard maximum load from 10.5″. |
| 2022 | Winchester USA Ready 125 gr Open Tip | 2,280 fps / 1,780 fps | 1,443 ft-lbs / -3.2 in | Target and range training projectile. High initial velocity, but steep deceleration past 100 yds. |
| 2023 | Hornady Custom 165 gr FTX | 1,980 fps / 1,640 fps | 1,434 ft-lbs / -4.5 in | Flex Tip technology provides reliable expansion down to 1,550 fps; extends 10.5″ hunting range to 135 yds. |
| 2024 | Federal Fusion 160 gr Bonded Soft Point | 2,010 fps / 1,660 fps | 1,435 ft-lbs / -4.2 in | Molecularly bonded core ensures deep penetration. Reliable performance on heavy shoulder bone out to 125 yds. |
| 2025 | Winchester Super Suppressed 255 gr Open Tip | 980 fps / 920 fps | 544 ft-lbs / -16.4 in | Subsonic factory specification. Optimized for suppressed short barrels; non-expanding target/plinking round. |
| 2026 | Winchester Power-Max Bonded 160 gr PHP | 2,030 fps / 1,685 fps | 1,464 ft-lbs / -4.0 in | Revised skived jacket tuned for moderate-velocity AR barrels; retains mushrooming down to 1,500 fps. |
Bullet Weight Selection: 150-Grain vs 170-Grain and 180-Grain
Choosing projectile mass in a short 10.5-inch barrel dictates the cartridge’s downrange utility. The 150-grain offerings (such as Winchester Deer Season XP) deliver the highest initial velocity, crossing the chronograph right at 2,050 fps. This extra speed flattens trajectory through 100 yards and promotes rapid fragmentation on light-framed whitetails. However, these light bullets carry lower momentum and bleed velocity quickly due to their low ballistic coefficient (BC approximately 0.180).
Conversely, 170-grain and 180-grain rounds leave the 10.5-inch muzzle between 1,860 and 1,950 fps. While their initial kinetic energy sits close to 1,400 ft-lbs, their retained downrange velocity drops rapidly. The 180-grain soft points deliver reliable bone-breaking penetration inside 75 yards, but their blunt profile creates substantial aerodynamic drag. For hunting in dense brush where shots rarely exceed 100 yards, the 170-grain Hornady InterLock represents the optimal compromise between external flight stability, bullet momentum, and terminal cavitation.
Velocity Loss by Configuration: 10.5-Inch vs 16-Inch Factory Barrels
Commercial sporting ammunition cartons display velocity figures derived from standard 16-inch, 18-inch, or 20-inch test barrels. When transitioning that exact commercial load to a compact 10.5-inch AR-15 platform or SBR, velocity degradation is unavoidable. Quantifying this deficit ensures that shooters establish realistic holdovers and maintain realistic kinetic expectations for medium game harvesting.
Velocity Degradation and Feet-Per-Second Loss Per Inch
Extensive chronograph testing indicates that the .350 Legend loses an average of 25 to 45 fps per inch of barrel removed between 16 inches and 10.5 inches. While bottleneck cartridges like 5.56 NATO or .243 Winchester suffer severe performance drops in sub-12-inch barrels, straight-wall cartridges retain efficiency remarkably well. Removing 5.5 inches of rifling results in a total velocity loss between 175 and 275 fps across most commercial hunting grain weights.
Velocity Comparison: 10.5-Inch vs 16-Inch Factory Barrels (fps)
2,300 fps
2,050 fps (-250 fps)
2,175 fps
1,950 fps (-225 fps)
2,090 fps
1,880 fps (-210 fps)
Blue bars represent standard 16-inch carbine baseline; orange bars represent actual 10.5-inch chronographed output.
Powder Burn Rate Dynamics in Straight-Wall Cartridge Cases
The reason the .350 Legend performs exceptionally well in short barrel platforms centers on internal ballistics. To operate within its 55,000 psi operating ceiling while driving broad .357-caliber projectiles, cartridge engineers load .350 Legend with relatively fast-burning propellants comparable to powders like Winchester 296, Hodgdon H110, or Lil’Gun. In a typical 16-inch barrel, roughly 98% of the powder charge is fully consumed before the projectile exits the crown.
In a 10.5-inch configuration, approximately 85% to 90% of the total powder charge reaches complete combustion before uncorking. Because the bulk of the internal pressure spike occurs within the first 4 to 7 inches of bore travel, the round captures the lion’s share of its acceleration potential early. This internal efficiency explains why a 10.5-inch barrel preserves nearly 90% of the round’s standard muzzle velocity, compared to bottlenecked cartridges that frequently lose up to 25% of their total speed in similar barrel reductions.
Muzzle Blast and Gas Port Pressures in Pistol-Length Systems
While velocity retention remains high, truncating the barrel to 10.5 inches yields two mechanical trade-offs: intense muzzle blast and elevated gas port pressure. When the bullet leaves the muzzle at 10.5 inches, residual bore pressure remains near 12,000 to 15,000 psi—significantly higher than the 6,000 to 8,000 psi uncorking pressure found at a 16-inch muzzle. This results in substantial concussion, visible fireball, and increased acoustic pressure.
In the direct impingement AR-15 platform, 10.5-inch barrels typically employ carbine-length gas systems. The short distance between the gas port and the muzzle leaves limited dwell time. Barrel manufacturers compensate by enlarging the gas port diameter (frequently between 0.076 and 0.082 inches). Using an adjustable gas block and an H2 or H3 heavy buffer assembly is highly recommended to manage bolt carrier velocity and prevent premature case rim shearing or failure-to-extract malfunctions.
Year-by-Year Factory Specification Changes and Projectile Evolution (2019–2026)
Since Winchester Repeating Arms formally launched the .350 Legend at SHOT Show 2019, the cartridge has undergone substantial industrial refinement. Initially developed to meet straight-wall cartridge hunting regulations in Midwestern states (such as Ohio, Michigan’s limited firearm zone, Indiana, and Iowa), ammunition manufacturers initially tailored load specifications exclusively around long-barreled bolt-action rifles. Between 2019 and 2026, factory offerings diversified to embrace compact AR pistols and suppressed configurations.
2019 to 2022 Baseline Factory Introductions and Challenges
- 2019 Model Year Launch: Winchester introduced the foundational 150-grain Deer Season XP and 180-grain Super-X. Both relied on jackets hardened for 2,200+ fps impact velocities. Early adopters shooting 10.5-inch AR builds experienced erratic expansion downrange, with bullets behaving like full metal jacket projectiles past 75 yards.
- 2020 Manufacturing Standardization: Hornady entered the market with the 170-grain American Whitetail, establishing tighter SAAMI dimension controls on bullet shank diameters (.355- to .357-inch variance resolutions) and standardizing feed-ramp geometry for reliable cycling in standard AR-15 magazines.
- 2021 Monolithic Offerings: Manufacturers including Browning launched solid copper projectiles (155 gr BXS). Field reports quickly confirmed that all-copper monolithic bullets require extreme velocity to initiate hydraulic petal peeling, rendering them largely unsuitable for sub-12-inch barrels beyond point-blank distances.
- 2022 Target and Range Expansions: Release of commercial FMJ and open-tip bulk practice ammunition (e.g., Winchester USA Ready 125 gr and Federal American Eagle). These loads reduced shooting costs and permitted comprehensive cycling and buffer tuning for short-barrel AR pistols.
2023 to 2026 Projectile Design Tweaks and Subsonic Innovations
- 2023 Low-Velocity Expansion Reworks: Hornady tuned its 165-grain FTX elastomer tip core specifically for the .350 Legend, lowering the reliable expansion floor to approximately 1,550 fps. This single engineering update added 25 yards of ethical medium game capability to 10.5-inch configurations.
- 2024 Bonded Core Hunting Introductions: Federal released the 160-grain Fusion bonded load. Electro-chemically bonding the jacket to the lead core minimized jacket-core separation when hitting dense deer shoulder bone at short-barrel impact velocities.
- 2025 Subsonic Heavyweights: Factory production of 255-grain subsonic rounds expanded across major brands. Running at 980 to 1,020 fps from a 10.5-inch barrel, these heavy-grain projectiles paired with suppressors offer hearing-safe target shooting and pest eradication, though hunting capability remains limited due to non-expanding projectile geometry.
- 2026 Optimized Short-Barrel Offerings: Introduction of Winchester Power-Max Bonded and next-generation hunting skives engineered to mushroom reliably at velocities as low as 1,500 fps. These latest factory specifications finally decouple straight-wall terminal performance from 20-inch test barrel requirements.
Ensure your 10.5″ barrel has a 1:16 twist rate to properly stabilize bullets ranging from 150 to 180 grains.
Measure true muzzle output. Do not apply box velocity ratings from 20-inch barrels to drop tables.
Identify your bullet’s minimum expansion speed (usually 1,600 fps) to locate your hard ethical range limit.
Establish a 100-yard zero to keep mid-range rise under 1.5 inches while limiting drop at 135 yards to under 3 inches.
Terminal Expansion Thresholds and Maximum Effective Range Chart Data
The central constraint of firing .350 Legend out of a 10.5-inch barrel is terminal expansion downrange. While modern rifle bullets are designed to mushroom and create massive temporary and permanent wound cavities, they require a baseline hydraulic shock velocity upon impact. Without sufficient impact speed, copper jackets fail to peel back, and lead cores do not mushroom, causing the projectile to pass cleanly through soft tissue like an FMJ pencil round.
Most standard .350 Legend cup-and-core soft points require a minimum impact velocity of 1,600 to 1,650 fps to initiate reliable petal expansion. When starting at 1,950 to 2,050 fps out of a 10.5-inch barrel, the bullet drops below this terminal threshold between 125 and 150 yards. Shooting game animals beyond this distance risks wounding losses due to failure to mushroom.
Minimum Velocity Expansion Thresholds for Popular Hunting Bullets
Different projectile designs exhibit varying expansion floors. Monolithic copper bullets (such as the Browning BXS) require higher impact forces—roughly 1,750 to 1,800 fps—to peel back their petals. Because a 10.5-inch barrel launches a 155-grain projectile at just 2,020 fps, an all-copper round drops below its expansion threshold before reaching 80 yards. Polymer-tipped cup-and-core bullets (Winchester Extreme Point) expand reliably down to roughly 1,600 fps, while flex-tipped lead cores (Hornady FTX) can expand down to 1,500 to 1,550 fps.
Downrange Trajectory and Drop Table (50 to 200 Yards)
Due to low ballistic coefficients (BC 0.180 to 0.230) and lower initial muzzle velocities, downrange drop accelerates quickly past 100 yards in a 10.5-inch barrel. Understanding this trajectory arc prevents missed vitals in the field.
- 50 Yards: +0.8 inches high | 1,810 fps | 1,236 ft-lbs
- 100 Yards: 0.0 inches (Zero) | 1,605 fps | 973 ft-lbs
- 125 Yards: -1.9 inches low | 1,510 fps | 860 ft-lbs (Terminal threshold border)
- 150 Yards: -4.8 inches low | 1,420 fps | 761 ft-lbs
- 175 Yards: -8.9 inches low | 1,340 fps | 678 ft-lbs
- 200 Yards: -14.4 inches low | 1,265 fps | 604 ft-lbs
Ethical Hunting Limits on Whitetail Deer in Straight-Wall Zones
Based on terminal ballistics data and downrange trajectory curves, the maximum ethical hunting range for a 10.5-inch .350 Legend on whitetail deer is 125 to 135 yards (extending to a hard ceiling of 150 yards exclusively with low-threshold projectiles like the Hornady FTX or Winchester Power-Max Bonded). While the projectile retains more than 750 ft-lbs of kinetic energy at 150 yards—satisfying many states’ statutory energy minimums—retained energy is meaningless without bullet expansion to transfer that shock to vitals. Shooters must treat the 10.5-inch .350 Legend as a compact, hard-hitting woods gun rather than an open-field rifle.
Zero your 10.5-inch setup at exactly 100 yards. This keeps your projectile within a 2-inch vital window from point-blank out to 125 yards, requiring no elevation holdovers on medium game within your ethical expansion window.
105 Inch 350 Legend Ballistics Chart Compared to Alternative Calibers
To evaluate the practical utility of a 10.5-inch .350 Legend, it must be contrasted with alternative short-barreled cartridge options frequently used in compact AR-15 platforms: .300 AAC Blackout and .450 Bushmaster. Each cartridge fulfills a specific niche in terms of legal compliance, recoil severity, blast signature, and downrange lethality.
350 Legend vs 300 AAC Blackout in 10.5-Inch Barrels
The .300 AAC Blackout was purposefully designed around a 9-inch barrel, utilizing bottleneck geometry to achieve complete burn and high efficiency in compact weapons. In a 10.5-inch setup, supersonic 110-grain loads (such as Barnes TAC-TX) offer flatter trajectories and higher ballistic coefficients, while subsonic 220-grain rounds cycle exceptionally well suppressed. However, the .300 Blackout is completely barred from hunting in Midwestern straight-wall zones. In those legal jurisdictions, the 10.5-inch .350 Legend serves as the direct straight-wall equivalent, delivering superior frontal bullet diameter (.357 vs .308) and 250 to 300 ft-lbs more muzzle kinetic energy.
350 Legend vs 450 Bushmaster: Blast, Recoil, and Energy
The .450 Bushmaster is the primary straight-wall alternative to the .350 Legend. In a 10.5-inch barrel, the .450 Bushmaster hits with devastating force, generating nearly 1,900 ft-lbs of energy. However, in an AR pistol or lightweight SBR, shooting a 10.5-inch .450 Bushmaster generates punishing recoil (more than 2.5 times that of the .350 Legend) and an overwhelming concussive blast that can induce severe flinching and significantly slow down follow-up shots. The .350 Legend provides an ideal balance: manageable recoil, legal straight-wall compliance, standard bolt compatibility, and sufficient energy for clean deer harvests.
✅ 10.5-Inch 350 Legend Advantages
- 100% legal in restricted straight-wall deer hunting jurisdictions.
- 88–92% velocity retention compared to full 16-inch barrels.
- Very mild recoil (~8.5 ft-lbs) enables rapid, accurate second shots.
- Uses standard 5.56 bolt faces in AR-15 platforms.
❌ 10.5-Inch 350 Legend Limitations
- Downrange velocity loss limits ethical hunting range to 125–150 yards.
- Increased muzzle blast and flash compared to 16-inch carbines.
- Sensitive to gas port erosion and requires heavy buffer tuning.
- Requires dedicated .350 Legend magazines for reliable feeding.
350 Legend 105 Inch Barrel Ballistics Chart Frequently Asked Questions
The phrase “105 inch barrel” is an extremely common typographical search error where the decimal point is omitted. It refers directly to a 10.5-inch barrel, which is the most popular compact barrel length for AR-15 pistols and registered short-barreled rifles (SBRs) chambered in .350 Legend.
Shooters lose an average of 180 to 260 feet per second when moving from a standard 16-inch barrel down to a 10.5-inch barrel. This represents a performance loss of roughly 35 to 45 fps per inch removed, preserving about 88% to 92% of full-length carbine velocity.
Yes, provided shots are kept within 125 to 150 yards. Beyond 135 yards, most commercial soft point and polymer-tipped hunting bullets drop below their critical 1,600 fps expansion floor, preventing reliable bullet mushrooming and severely limiting tissue disruption.
The 165-grain or 170-grain polymer-tipped/soft-point projectile (such as Hornady FTX or American Whitetail) is widely considered optimal. These weights balance sufficient starting muzzle velocity (~1,950 to 1,980 fps) with enough downrange momentum to expand reliably on deer-sized game out past 100 yards.
A 10.5-inch barrel operates most reliably with a carbine-length gas system paired with an H2 or H3 heavy buffer. Because straight-wall cases produce higher residual gas port pressure in short barrels, an adjustable gas block helps tame over-gassing and reduces wear on the bolt carrier group.
Final Summary on 350 Legend 10.5 Inch Factory Specifications and Field Performance
The 10.5-inch .350 Legend configuration stands as one of the most effective, legal options for hunters and defensive shooters operating within straight-wall restricted states. Operating with fast-burning propellants, the cartridge maintains high combustion efficiency in compact barrels, driving 150- to 170-grain hunting rounds between 1,950 and 2,050 fps while producing over 1,400 ft-lbs of muzzle energy. However, hunters must respect downrange expansion thresholds: the lower initial velocity places a hard ceiling on ethical whitetail shots at 125 to 150 yards. Before heading afield this season, verify your build’s exact muzzle velocity across an optical chronograph, confirm your 100-yard zero, and print a verified drop chart matching your specific factory ammunition lot.
